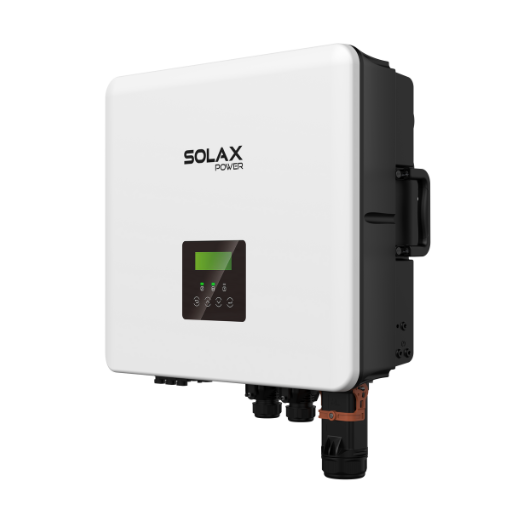

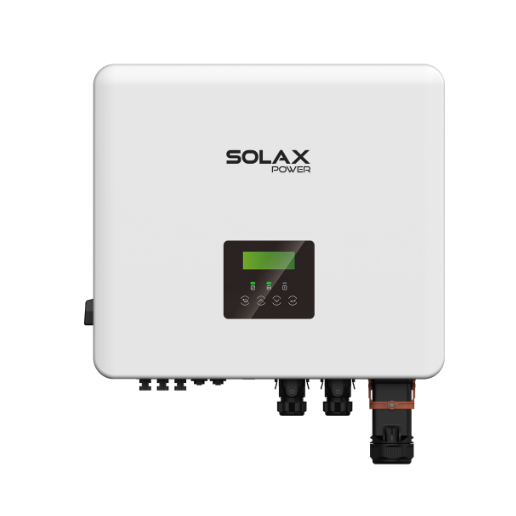

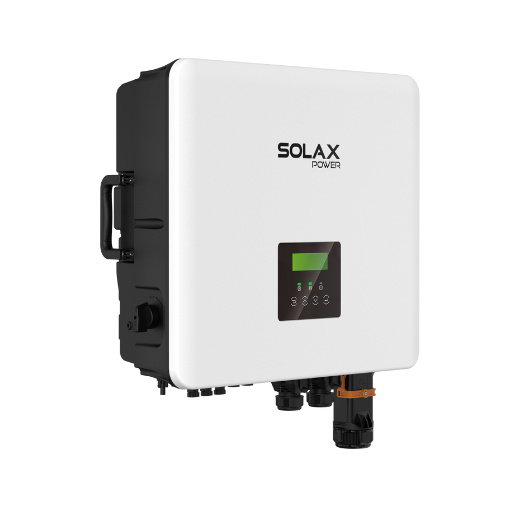

Хибриден инвертор
X3-HYB-G4 PRO
-
4kW / 5kW / 6kW / 8kW / 10kW / 12kW / 15kW
Инверторът SolaX X3-HYBRID G4 PRO разполага с тройна MPPT система с 20A вход на тракер и широк обхват на напрежение 110-950V, за максимизиране на добива на слънчева енергия в различни инсталации. Оборудван за V2X готовност, интуитивно управление и пълна съвместимост с VPP, той е създаден за енергийните нужди на утрешния ден.
-
Гледайте видеото
Предимство на продукта
Неговата стабилна входна архитектура обработва до 200% PV вход и поддържа небалансирани трифазни товари до 5 kW на фаза. Двойните портове за батерии и 2-в-1 функцията за разширение предлагат гъвкави конфигурации за съхранение, докато допълнителните портове за окабеляване и елегантният капак над кабелите осигуряват рационализирани и професионални инсталации.
High Performance
20A DC input per MPPT with 3 trackers
200% PV oversizing and up to 110% AC output
Ultra-wide MPPT range of 110-950V
Smart Management
V2X ready for smart home energy integration
Smart Schedule, Smart Scene, and 7*24h TOU
Wireless meter compatibility
VPP ready with a variety of compatibility(OpenADR, IEEE2030.5, FCAS, API)
Flexible Adaptability
Dual battery ports & 2-in-1 function for expansion

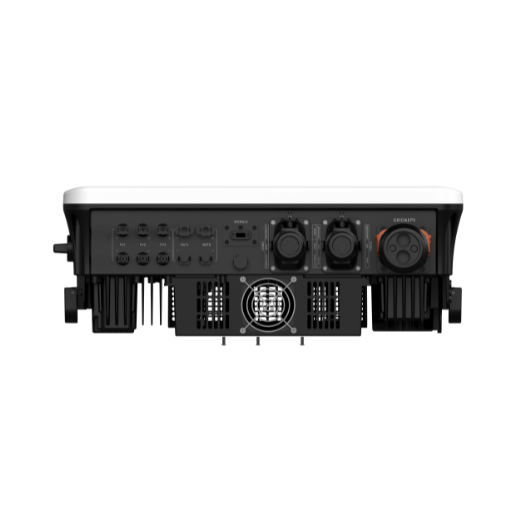

Additional ports for simplified wiring and installation
Functional and stylish wiring cover
Microgrid and generator modes for versatile operations
Assured Reliability
Up to 200% EPS output for 10s
UPS-level switchover time<10ms
Optional Rapid Shutdown function for enhanced safety
Type II SPD on AC&DC side
Optional AFCI protection*
Параметри на продукта
-
X3-HYB-4.0-P-
PV INPUT
Max. recommended PV array power 8 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 20A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 4000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-5.0-P
-
PV INPUT
Max. recommended PV array power 10 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 20A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 5000 W (AS 4777 4999 W)
Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-6.0-P
-
PV INPUT
Max. recommended PV array power 12 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 2(1/1) Max. input current per MPPT 20A/20 A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 6000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-8.0-P
-
PV INPUT
Max. recommended PV array power 16 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A / 20A / 20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 8000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-10.0-P
-
PV INPUT
Max. recommended PV array power 20 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A/20A/20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 10000 W
(AS 4777 9999 W)
Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-12.0-P
-
PV INPUT
Max. recommended PV array power 24 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A/20A/20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 12000 W Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
-
X3-HYB-15.0-P
-
PV INPUT
Max. recommended PV array power 30 kWp MPPT voltage range 110~950V No. of MPP. trackers / strings per MPPT 3(1/1/1) Max. input current per MPPT 20A/20A/20A -
AC INPUT & OUTPUT (ON-GRID)
Rated output power 15000 W
(4S 4777 14999 W)
Rated AC voltage 3/N/PE,220/380V
3/N/PE,230/400V
-
EPS(OFF-GRID) OUTPUT(WITH BATTERY)
Peak EPS output power 2 times of rated power, 10 s Switchover time <10 ms -
GENERAL
Ingress protection IP66 Dimensions (W /H / D) 560x503x210 mm Net Weight 38 kg
-
