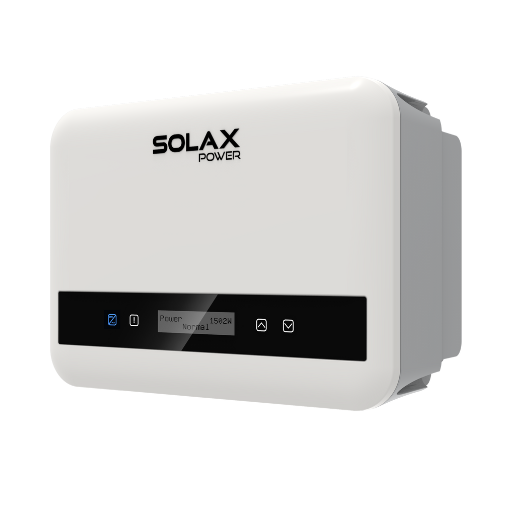

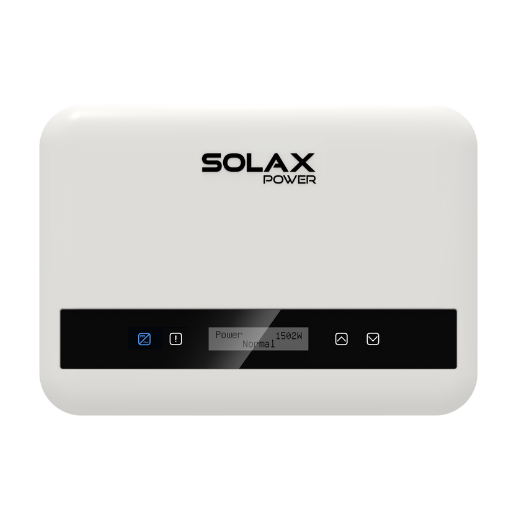

Монофазен инвертор

X1-MINI G4

0,6 kW / 0,7 kW / 0,8 kW / 1,1 kW / 1,5 kW / 2 kW / 2,5 kW / 3 kW / 3,3 kW

X1-MINI G4 се отличава с ултракомпактен размер – по-малък от лист A4 – което го прави идеален за монтаж на балкони и тесни пространства. С вградена поддръжка за паралелна работа и интелигентно управление на натоварванията, той е проектиран за безпроблемна интеграция и лесна мащабируемост.

Гледайте видеото
Изтегляне на данни

Предимство на продукта

Отключете до 200% преоразмеряване на PV системи и 16A вход с X1-MINI G4, създаден да поддържа високо-мощни панели и глобално MPP проследяване. Неговият ултраширок MPPT диапазон и оптимизация на попадането в сянка осигуряват максимален енергиен добив при всякакви условия.

Свържете се с нас

Intelligent Design

10s data refresh on SolaXCloud
I-V curve diagnosis

Flexible Adaptability

Supports parallel operation for up to 5 inverters, no external EMS required
Smart loads management (e.g., heat pump, smart EV charger)

High Efficiency

200% PV oversizing and 16A input to support
High-power panels
Ultra-Wide MPPT voltage range
Global MPP tracking with shade optimization

Assured Safety

Type II SPD on AC&DC side
Ready for Rapid Shutdown function
AFCI support (optional)
Built-in export control function

Параметри на продукта

X1-MINI-0.6K-G4
X1-MINI-0.7K-G4
X1-MINI-0.8K-G4
X1-MINI-1.1K-G4
X1-MINI-1.5K-G4
X1-MINI-2.0K-G4
X1-MINI-2.5K-G4
X1-MINI-3.0K-G4
X1-MINI-3.3K-G4

X1-MINI-0.6K-G4
- PV INPUT

  Max. recommended PV array power 1.2 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 600 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-0.7K-G4
- PV INPUT

  Max. recommended PV array power 1.4 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 700 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-0.8K-G4
- PV INPUT

  Max. recommended PV array power 1.6 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 800 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-1.1K-G4
- PV INPUT

  Max. recommended PV array power 2.2 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 1100 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-1.5K-G4
- PV INPUT

  Max. recommended PV array power 3 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 1500 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-2.0K-G4
- PV INPUT

  Max. recommended PV array power 4 kWp
  MPPT voltage range 40 ~ 450 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 2000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.2 kg
X1-MINI-2.5K-G4
- PV INPUT

  Max. recommended PV array power 5 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
X1-MINI-3.0K-G4
- PV INPUT

  Max. recommended PV array power 6 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
X1-MINI-3.3K-G4
- PV INPUT

  Max. recommended PV array power 6.6 kWp
  MPPT voltage range 40 ~ 550 V
  No. of MPP trackers / strings per MPP tracker 1 / 1
  Max. input current per MPPT 16 A
- AC OUTPUT

  Rated output power 3300 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  290 × 206 × 120 mm
  Net Weight 5.5 kg
