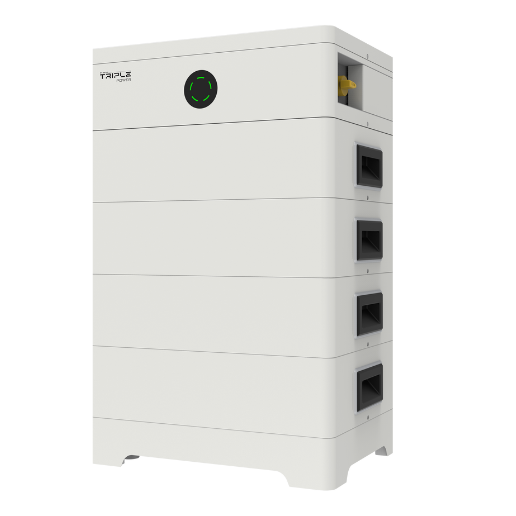

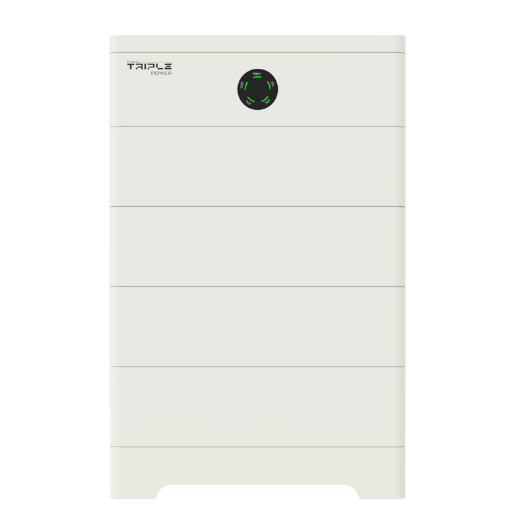

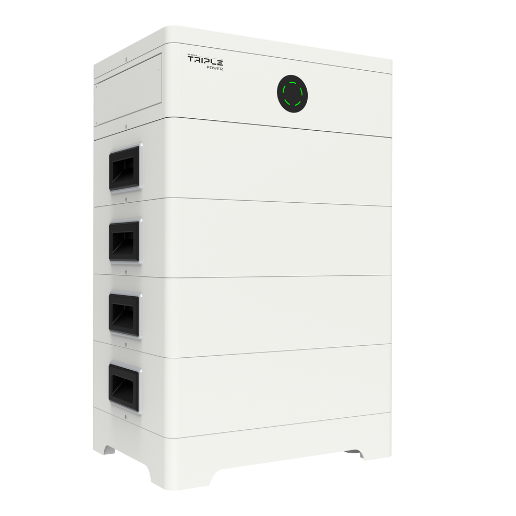

Батерия
T-BAT-SYS-HV-S2.5
-
5,1 kWh-33,2 kWh
Оборудвана с LFP батерии и високопроизводителни процесори, системата предлага широк диапазон на капацитет от 5,1 kWh до 33,2 kWh. T-BAT-SYS-HV-S2.5 разполага с максимален ток на зареждане/разреждане от 50A, и IP65 защита за безопасна работа.
-
Гледайте видеото
Предимство на продукта
Той предлага надеждно енергийно решение с лесен модулен монтаж и гъвкавост за приложения в мрежата, извън мрежата и резервни приложения. Захранвана от безопасна литиево-фосфатна батерия, осигурява дълготрайна работа, което прави системата идеална за различни енергийни нужди.
Flexible Adaptability
Extendable capacity for lifetime use
Stackable modules, plug and play design
High Performance
5.1-33.2 kWh wide capacity range
Max. 50A charging/discharging current
Cycle life > 6000 times
Assured Reliability
LiFePO4 battery cell & high-performance processors
IP65 protection degree
Soft start to protect from a sudden surge
Smart Management
Remote fault diagnosis, upgrade and maintenance
Unique battery heating tech for low-temperature operation
Optional parallel connection using a two-in-one cable for easy capacity expansion and extend battery lifespan
Параметри на продукта
-
T-BAT HS32.5-
SYSTEM DATA
Number of modules 13 Modules Rated energy 33.28 kWh Rated voltage 665.6 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS30.0-
SYSTEM DATA
Number of modules 12 Modules Rated energy 30.72 kWh Rated voltage 614.4 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS27.5
-
SYSTEM DATA
Number of modules 11 Modules Rated energy 28.16 kWh Rated voltage 563.2 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS25.0
-
SYSTEM DATA
Number of modules 10 Modules Rated energy 25.60 kWh Rated voltage 512.0 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS22.5
-
SYSTEM DATA
Number of modules 9 Modules Rated energy 23.04 kWh Rated voltage 460.8 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS20.0
-
SYSTEM DATA
Number of modules 8 Modules Rated energy 20.48 kWh Rated voltage 409.6 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS17.5
-
SYSTEM DATA
Number of modules 7 Modules Rated energy 17.92 kWh Rated voltage 358.4 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS15.0
-
SYSTEM DATA
Number of modules 6 Modules Rated energy 15.36 kWh Rated voltage 307.2 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS12.5
-
SYSTEM DATA
Number of modules 5 Modules Rated energy 12.80 kWh Rated voltage 256.0 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS10.0
-
SYSTEM DATA
Number of modules 4 Modules Rated energy 10.24 kWh Rated voltage 204.8 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS7.5
-
SYSTEM DATA
Number of modules 3 Modules Rated energy 7.68 kWh Rated voltage 153.6 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
-
T-BAT HS5.0
-
SYSTEM DATA
Number of modules 2 Modules Rated energy 5.12 kWh Rated voltage 102.4 V Max. charge/discharge current 50A
-
GENERAL
Battery module 2.5 kWh Dimensions (W x H x D) 510x157x365 mm Net weight 13 kg Battery type LFP Ingress protection IP65
-
Изтегляне на данни
-
Технически данни
-
Ръководство за потребителя
-
Ръководство за бърза инсталация
-
Декларация
-
