Батерия

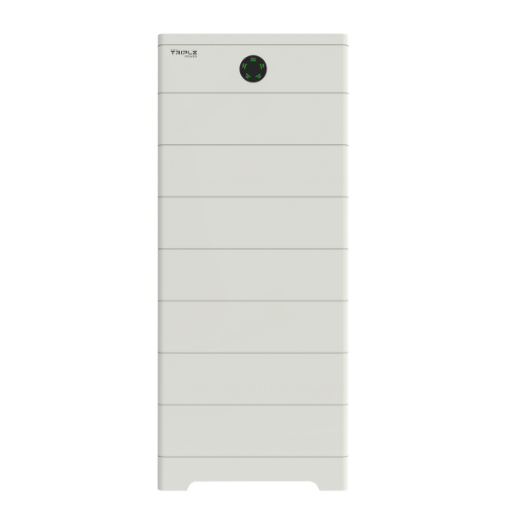

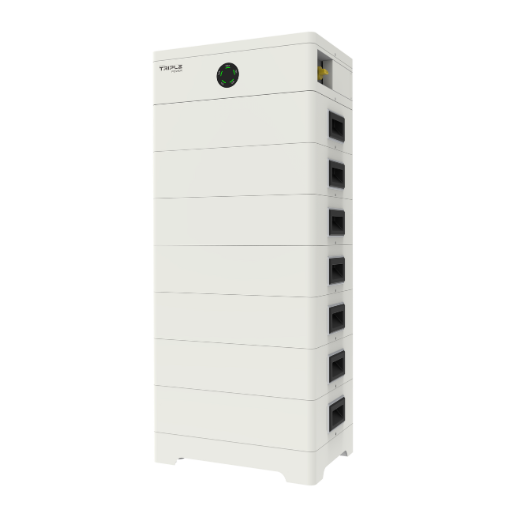

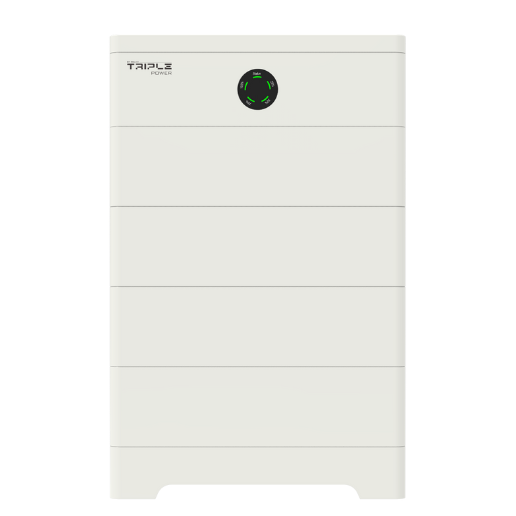

T-BAT-SYS-HV-S3.6

  • 7,3 kWh-47,9 kWh

С широк диапазон на капацитет от 7,3 kWh до 47,9 kWh и максимален ток на зареждане/разреждане от 50A, тази батерия осигурява ефективно съхранение и доставка на енергия.

Предимство на продукта

Тази батерия предлага изключителна гъвкавост с подреждащи се модули и plug-and-play дизайн за бърз монтаж. Изграден с високопроизводителни процесори, T-BAT-SYS-HV-S3.6 предоставя безопасно и лесно за употреба енергийно решение за променящите се енергийни нужди.

Свържете се с нас

Flexible Adaptability

  • Extendable capacity for lifetime use

  • Stackable modules, plug and play design

High Performance

  • 7.3-47.9 kWh wide capacity range

  • Max. 50A charging/discharging current

  • Cycle life > 6000 times

Assured Reliability

  • LiFePO4 battery cell & high-performance processors

  • IP65 protection degree

  • Soft start to protect from a sudden surge

Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Unique battery heating tech for low-temperature operation

  • Optional parallel connection using a two-in-one cable for easy capacity expansion and extend battery lifespan

Параметри на продукта

  • T-BAT HS46.8
  • T-BAT HS43.2
  • T-BAT HS39.6
  • T-BAT HS36.0
  • T-BAT HS32.4
  • T-BAT HS28.8
  • T-BAT HS25.2
  • T-BAT HS21.6
  • T-BAT HS18.0
  • T-BAT HS14.4
  • T-BAT HS10.8
  • T-BAT HS7.2
  • T-BAT HS46.8
    • SYSTEM DATA
      Number of modules13 Modules
      Rated energy47.92 kWh
      Rated voltage665.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS43.2
    • SYSTEM DATA
      Number of modules12 Modules
      Rated energy44.24 kWh
      Rated voltage614.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS39.6
    • SYSTEM DATA
      Number of modules11 Modules
      Rated energy40.55 kWh
      Rated voltage563.2 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS36.0
    • SYSTEM DATA
      Number of modules10 Modules
      Rated energy36.86 kWh
      Rated voltage512.0 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS32.4
    • SYSTEM DATA
      Number of modules9 Modules
      Rated energy33.18 kWh
      Rated voltage460.8 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS28.8
    • SYSTEM DATA
      Number of modules8 Modules
      Rated energy29.49 kWh
      Rated voltage409.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS25.2
    • SYSTEM DATA
      Number of modules7 Modules
      Rated energy25.80 kWh
      Rated voltage358.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS21.6
    • SYSTEM DATA
      Number of modules6 Modules
      Rated energy22.12 kWh
      Rated voltage307.2 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS18.0
    • SYSTEM DATA
      Number of modules5 Modules
      Rated energy18.43 kWh
      Rated voltage256.0 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS14.4
    • SYSTEM DATA
      Number of modules4 Modules
      Rated energy14.75 kWh
      Rated voltage204.8 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS10.8
    • SYSTEM DATA
      Number of modules3 Modules
      Rated energy11.06 kWh
      Rated voltage153.6 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65


  • T-BAT HS7.2
    • SYSTEM DATA
      Number of modules2 Modules
      Rated energy7.37 kWh
      Rated voltage102.4 V
      Max. charge/discharge current

      50A


    • GENERAL
      Battery module3.6 kWh
      Dimensions (W x H x D)510x157x365 mm
      Net weight10 kg
      Battery typeLFP
      Ingress protectionIP65
