C & I Батерии

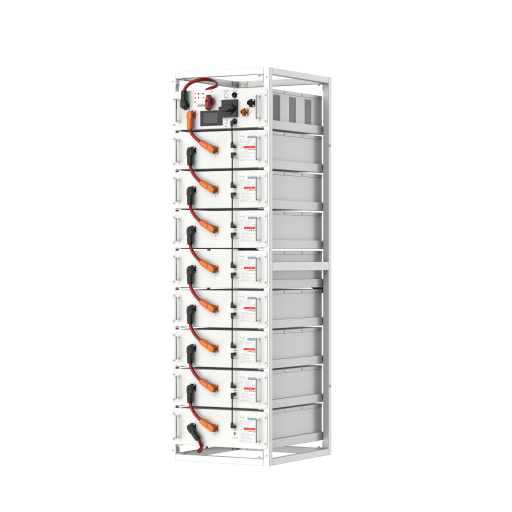

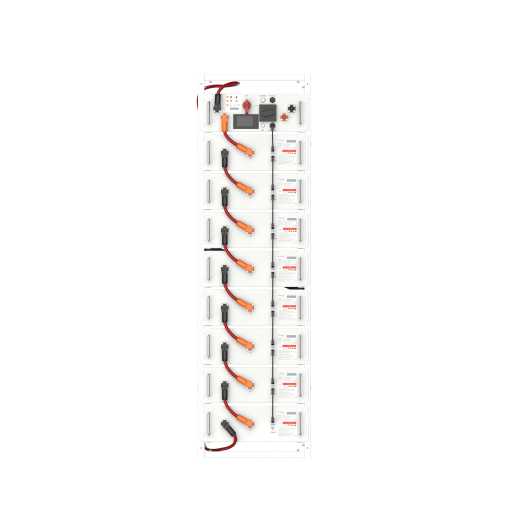

TSYS-HR76
-
7,68 kWh | LFP 150Ah
Предимство на продукта
TSYS-HR76 е създаден за гъвкавост и надеждна работа, предлагайки работен температурен диапазон от 0°C до 55°C за зареждане и от -20°C до 55°C за разреждане. Мащабируемият му дизайн позволява от 5 до 14 модула на комплект, осигурявайки номинален диапазон на напрежение от 256,0 V до 716,8 V. С номинална мощност от 23,0 kW до 64,5 kW, той осигурява адаптивна производителност в различни търговски и промишлени приложения за съхранение на енергия.
Efficiency
Delivers sustained 1C performance for short duration*
*Under ambient temperature of 25 ± 2°C, each instance of continuous 1C operation should not exceed 0.5 hours
Embedded installation design for rapid deployment
Modular architecture for streamlined maintenance
Intelligence
Automated charge/discharge management
Multi-level protection: overcharge, over-discharge, thermal extremes
Reliability
High-safety LFP battery
Extended cycle life for long-term performance
Flexible Configuration
Scalable battery cluster (5–14 modules per set)
Remote firmware upgrade support
Full compatibility with SolaX inverters
Параметри на продукта
-
T-HR38.4 / T-HR38.4P-
SYSTEM SPECIFICATION
Module quantities 5 Nominal energy 38.4 kWh Nominal voltage 256.0 V Max. charge / discharge current 150 A Rated power 23.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR46.0 / T-HR46.0P
-
SYSTEM SPECIFICATION
Module quantities 6 Nominal energy 46.0 kWh Nominal voltage 307.2 V Max. charge / discharge current 150 A Rated power 27.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR53.7 / T-HR53.7P
-
SYSTEM SPECIFICATION
Module quantities 7 Nominal energy 53.7 kWh Nominal voltage 358.4 V Max. charge / discharge current 150 A Rated power 32.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR61.4 / T-HR61.4P
-
SYSTEM SPECIFICATION
Module quantities 8 Nominal energy 61.4 kWh Nominal voltage 409.6 V Max. charge / discharge current 150 A Rated power 36.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR69.2 / T-HR69.2P
-
SYSTEM SPECIFICATION
Module quantities 9 Nominal energy 69.1 kWh Nominal voltage 460.8 V Max. charge / discharge current 150 A Rated power 41.4 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR76.8 / T-HR76.8P
-
SYSTEM SPECIFICATION
Module quantities 10 Nominal energy 76.8 kWh Nominal voltage 512.0 V Max. charge / discharge current 150 A Rated power 46.0 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR84.4 / T-HR84.4P
-
SYSTEM SPECIFICATION
Module quantities 11 Nominal energy 84.4 kWh Nominal voltage 563.2 V Max. charge / discharge current 150 A Rated power 50.6 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR92.1 / T-HR92.1P
-
SYSTEM SPECIFICATION
Module quantities 12 Nominal energy 92.1 kWh Nominal voltage 614.4 V Max. charge / discharge current 150 A Rated power 55.2 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR99.8 / T-HR99.8P
-
SYSTEM SPECIFICATION
Module quantities 13 Nominal energy 99.8 kWh Nominal voltage 665.6 V Max. charge / discharge current 150 A Rated power 59.8 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
-
T-HR107.5 / T-HR107.5P
-
SYSTEM SPECIFICATION
Module quantities 14 Nominal energy 107.5 kWh Nominal voltage 716.8 V Max. charge / discharge current 150 A Rated power 64.5 kW -
BATTERY MODULE
Battery model TB-HR76 Nominal energy 7.68 kWh Nominal voltage 51.2 V Rated capacity 150 Ah Dimensions (W x H x D) 450 × 180 × 580 mm Weight 60 kg -
GENERAL
Operating temperature range 0 ~ 55°C (charge)
-20 ~ 55°C (discharge)
Max.operating altitude 3000 m Environment Indoor
-
