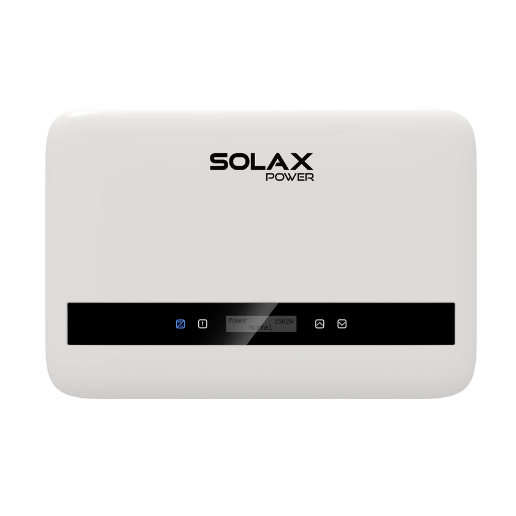

Еднофазен инвертор

X1-BOOST G4

2,5 kW / 3 kW / 3,3 kW / 3,6 kW / 4 kW / 4,2 kW / 5 kW / 6 kW

X1-BOOST G4 предлага гъвкава адаптивност с поддръжка на паралелна работа до 5 инвертора. Интелигентното му управление на натоварването осигурява безпроблемна интеграция с термопомпи и интелигентни зарядни устройства за EV, което го прави идеален за разнообразни жилищни конфигурации.

Гледайте видеото
Изтегляне на данни

Предимство на продукта

X1-BOOST G4 поддържа 200% преоразмеряване на PV системи и 16A iвход за работа с мощни панели. Повишената безопасност е гарантирана със SPD тип II, поддръжка на AFCI и бърза готовност за изключване, което го прави първокласен избор за съвременните слънчеви системи.

Свържете се с нас

Flexible Adaptability

Supports parallel operation for up to 5 inverters, no external EMS required
Smart loads management (e.g., heat pump, smart EV charger)

High Efficiency

200% PV oversizing and 16A input to support high-power panels
50V startup voltage
Built-in export control

Intelligent Design

10s data refresh on SolaX Cloud
Easy configuration via WiFi & App
I-V Curve diagnosis

Assured Safety

Type II SPD on AC&DC side
Ready for Rapid Shutdown function
AFCI support (optional)
Built-in export control function

Параметри на продукта

X1-BOOST-6K-G4
X1-BOOST-5K-G4
X1-BOOST-4.2K-G4
X1-BOOST-4K-G4
X1-BOOST-3.6K-G4
X1-BOOST-3.3K-G
X1-BOOST-3K-G4
X1-BOOST-2.5K-G4

X1-BOOST-6K-G4
- PV INPUT

  Max. recommended PV array power 12.0 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 6000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.5 kg
X1-BOOST-5K-G4
- PV INPUT

  Max. recommended PV array power 10.0 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 5000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.5 kg
X1-BOOST-4.2K-G4
- PV INPUT

  Max. recommended PV array power 8.0 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 4200 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.0 kg
X1-BOOST-4K-G4
- PV INPUT

  Max. recommended PV array power 8.0 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 4000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.0 kg
X1-BOOST-3.6K-G4
- PV INPUT

  Max. recommended PV array power 7.2 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 3680 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.0 kg
X1-BOOST-3.3K-G
- PV INPUT

  Max. recommended PV array power 6.6 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 3300 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.0 kg
X1-BOOST-3K-G4
- PV INPUT

  Max. recommended PV array power 6.0 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 3000 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.0 kg
X1-BOOST-2.5K-G4
- PV INPUT

  Max. recommended PV array power 6.0 kWp
  MPPT voltage range 40 ~ 560 V
  No. of MPP trackers / strings per MPP tracker 2 / (1 / 1)
  Max. input current per MPPT 16 A / 16 A
- AC OUTPUT

  Rated output power 2500 W
  Rated AC voltage
  1 / N / PE, 220 / 230 / 240 V
- GENERAL

  Ingress protection IP66
  Dimensions (W /H / D)
  404 × 274 × 146 mm
  Net Weight 11.0 kg
