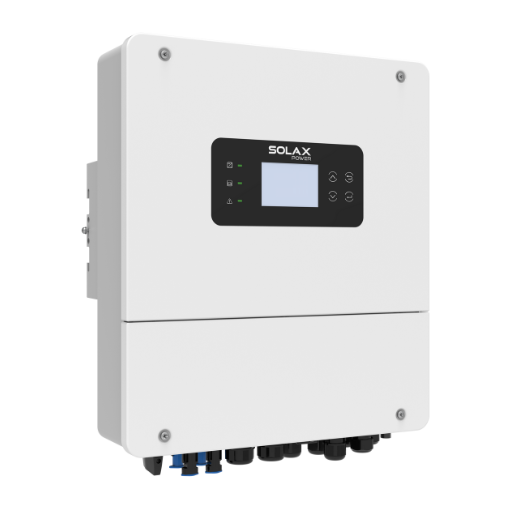

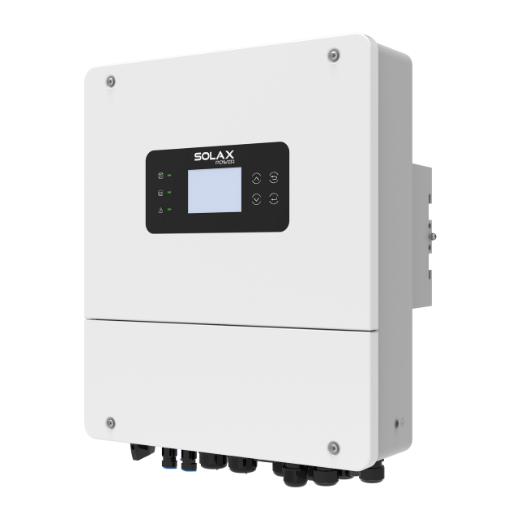

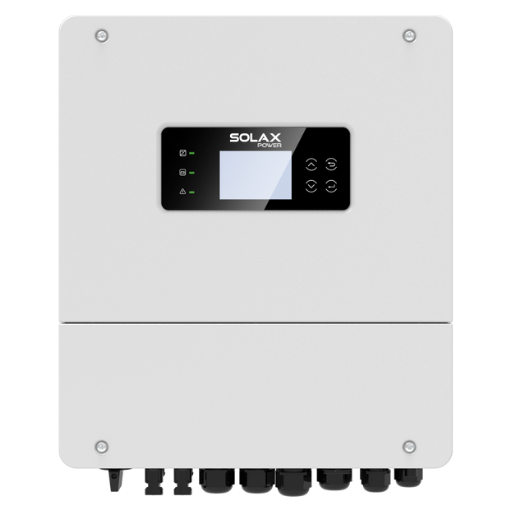

Хибриден инвертор

X1-HYB LV

3,0 kW / 3,7 kW / 4,0 kW / 4,6 kW / 5,0 kW / 6,0 kW

Серията X1-Hybrid LV, предлагана от 3 kW до 6 kW, съчетава лесен за употреба LCD екран за задоволяване на съвременните енергийни нужди на жилищата. Инверторът също така предлага лесна интеграция с генератор и микромрежа, което го прави идеален избор за широк спектър от хибридни слънчеви приложения.

Гледайте видеото
Изтегляне на данни

Предимство на продукта

X1-Hybrid LV осигурява до 110% AC изход и 200% пикова EPS мощност за 10 секунди, осигурявайки надежден бекъп. Проектиран както за сценарии в мрежата, така и извън нея, инвертора поддържа до три системи паралелно, предлагайки мащабируеми енергийни решения за всеки дом.

Свържете се с нас

Smart Management

Single unit UPS-level switchover time < 4 ms
Global MPP scan for optimal energy harvest
Smart loads management
CT compatibility with fast load response in just 0.3 seconds

High Performance

200% PV oversizing and up to 110% AC output
200% peak EPS power for 10 s
Max. 120A charging / discharging current
Low start-up voltage for longer operation

Assured Reliability

Battery terminal temperature detection
IP65 protection degree
Type II SPD on AC&DC side
Optional AFCI protection*

Flexible Adaptability

Max. 3pcs parallel for on-grid and off-grid*
Microgrid and generator function for versatile operations*
Max. 16A DC input current for high-power solar panel

Параметри на продукта

X1-HYB-3.0-LV
X1-HYB-3.7-LV
X1-HYB-4.0-LV
X1-HYB-5.0-LV
X1-HYB-6.0-LV

X1-HYB-3.0-LV
- PV INPUT

  Max. recommended PV array power 6000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 3000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 6000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 17.3 kg
X1-HYB-3.7-LV
- PV INPUT

  Max. recommended PV array power 7360 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 3680 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 8000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 16.5 kg
X1-HYB-4.0-LV
- PV INPUT

  Max. recommended PV array power 8000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 4000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 8000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 16.5 kg
X1-HYB-5.0-LV
- PV INPUT

  Max. recommended PV array power 10000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 5000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 10000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 17.3 kg
X1-HYB-6.0-LV
- PV INPUT

  Max. recommended PV array power 12000 Wp
  Operating voltage range 80 ~ 520 V
  No. of MPP trackers / strings per MPP tracker 2(1/1)
  Max. input current per MPPT 16 A/16 A
- AC INPUT & OUTPUT(ON-GRID)

  Rated output power 6000 W
  Rated AC voltage 1/N/PE, 220/230/240 V
- EPS (OFF-GRID) OUTPUT (WITH BATTERY)

  Peak EPS output power 12000 VA, 10 s
  Switchover time <4 ms
- GENERAL

  Ingress protection IP65
  Dimensions (W × H × D) 397 × 490 × 201 mm
  Net weight 17.3 kg
