Домашни батерии

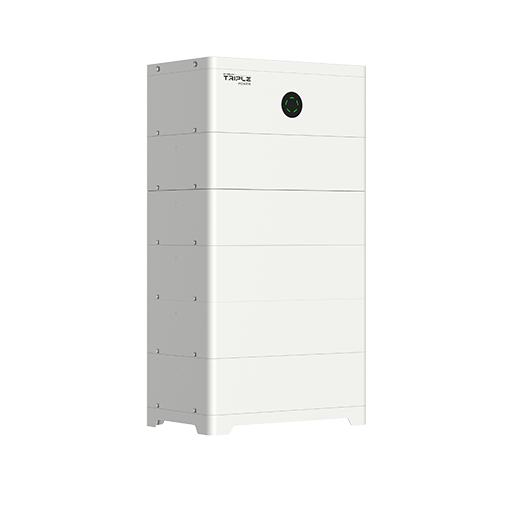

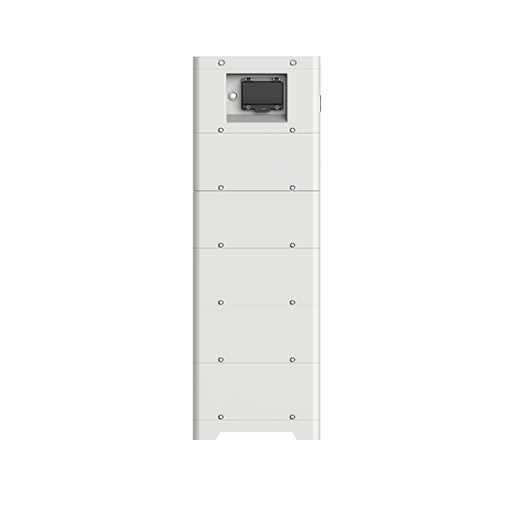

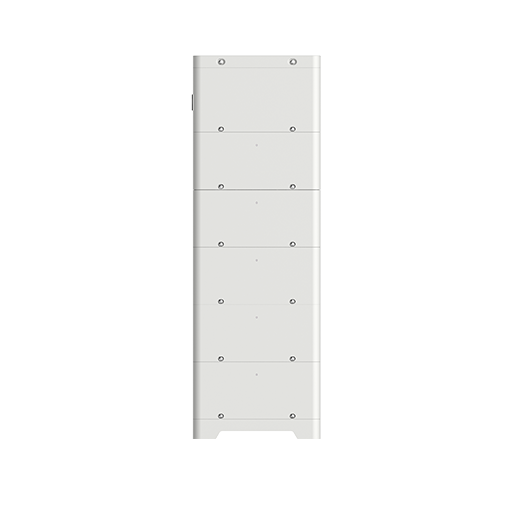

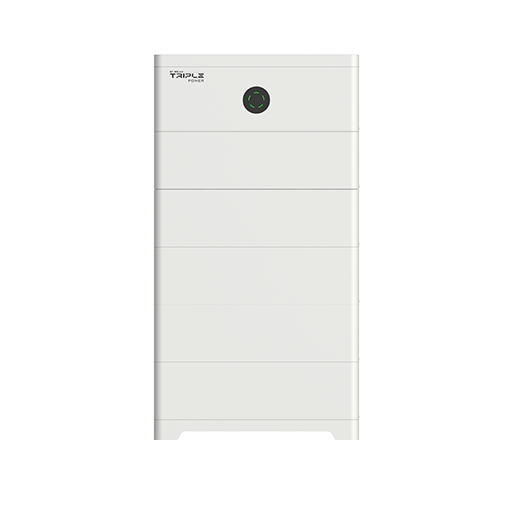

TSYS-HS51

10,2 kWh-66,5 kWh

TSYS-HS51 предлага широк диапазон на капацитет 10,2 kWh до 66,5 kWh, което го прави подходящ за различни енергийни нужди. Съвместимостта с TCBox-70 позволява разширяване до 3 колони батерии за увеличен капацитет.

Гледайте видеото
Изтегляне на данни

Предимство на продукта

TSYS-HS51 поддържа до 70A ток на зареждане/разреждане, осигуряващ бърз пренос на енергия. Със степен на защита IP66, се гарантира надеждна работа в различни среди. Системата разполага и с опционален кабел 2-в-1 за паралелни връзки, което спомага за удължаване на живота и оптимизиране на производителността.

Свържете се с нас

Assured Reliability

IP66 protection degree
LiFePO4 battery cell & high-performance processors
Aerosol fire suppression for precise protection

Smart Management

Remote fault diagnosis, upgrade and maintenance
Unique battery heating tech and wide temperature tolerance
Optional parallel connection using a two-in-one cable for easy capacity expansion and extend battery lifespan
Maximum 10% expansion of effective power over the entire life cycle to increase cycle life (optimizer version)
3-hour rapid equalization (optimizer version)

High Performance

10.2-66.5 kWh wide capacity range
Max. 70A charging / discharging current
Cycle life > 6000 times

Flexible Adaptability

Compatible with TCBox-70, up to 3 towers of batteries
Compact and stackable for easy installation
Supporting direct battery expansion
Supporting mixed use of new and old batteries, supports rapid capacity expansion, plug and play, no energy loss (optimizer version)

Параметри на продукта

T-HS10.2
T-HS15.3
T-HS20.4
T-HS25.6
T-HS30.7
T-HS35.8
T-HS40.9
T-HS46.0
T-HS51.2
T-HS56.3
T-HS61.4
T-HS66.5

T-HS10.2

SYSTEM SPECIFICATION

Number of modules 2
Rated energy 10.2 kWh
Rated voltage 102.4 V
Rated power
6.1 kW
Dimension (W x H x D) 600 × 621 × 376 mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Net weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS15.3

SYSTEM SPECIFICATION

Number of modules 3
Rated energy 15.3 kWh
Rated voltage 153.6 V
Rated power
9.2 kW
Dimension (W x H x D) 600x789 x376 mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS20.4
- SYSTEM SPECIFICATION

  Number of modules 4
  Rated energy 20.4 kWh
  Rated voltage 204.8 V
  Rated power
  12.3 kW
  Dimension (W x H x D) 600x957x376 mm
- GENERAL

  BMS Dimensions (L × W × H) 600 × 225 × 376 mm
  BMS Weight 18.5 kg
  Battery type Li-ion (LFP)
  Module capacity 5.1 kWh
  Battery dimension (W x H x D) 46 kg / 47.1 kg (with optimizer)
  Battery weight 46 kg
- GENERAL SPECIFICATION

  Environment Outdoor / Indoor
  Protection degree IP66

T-HS25.6

SYSTEM SPECIFICATION

Number of modules 5
Rated energy 25.6 kWh
Rated voltage 256.0 V
Rated power
15.4 kW
Dimension (W x H x D) 600 x 1125 x 376 mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS30.7

SYSTEM SPECIFICATION

Number of modules 6
Rated energy 30.7 kWh
Rated voltage 307.2 V
Rated power
18.4 kW
Dimension (W x H x D) 600x1293 x376 mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS35.8

SYSTEM SPECIFICATION

Number of modules 7
Rated energy 35.8 kWh
Rated voltage 358.4 V
Rated power
21.5 kW
Dimension (W x H x D) 600 x1461 x376 mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS40.9

SYSTEM SPECIFICATION

Number of modules 8
Rated energy 40.9 kWh
Rated voltage 409.6 V
Rated power
24.6 kW
Dimension (W x H x D) 600x1629x376 mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS46.0

SYSTEM SPECIFICATION

Number of modules 9
Rated energy 46.0 kWh
Rated voltage 460.8 V
Rated power
27.6 kW
Dimension (W x H x D)
600x957x376mm
+600x1125x376mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS51.2

SYSTEM SPECIFICATION

Number of modules 10
Rated energy 51.2 kWh
Rated voltage 512.0 V
Rated power
30.7 kW
Dimension (W x H x D)
600x1125x376mm
+600x1125x376mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS56.3

SYSTEM SPECIFICATION

Number of modules 11
Rated energy 56.3 kWh
Rated voltage 563.2 V
Rated power
33.8 kW
Dimension (W x H x D)
600x1293x376mm
+600x1125x376mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS61.4

SYSTEM SPECIFICATION

Number of modules 12
Rated energy 61.4 kWh
Rated voltage 614.4 V
Rated power
36.9 kW
Dimension (W x H x D)
600x1293x376mm
+600x1293x376mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66

T-HS66.5

SYSTEM SPECIFICATION

Number of modules 13
Rated energy 66.5 kWh
Rated voltage 665.6 V
Rated power
39.9 kW
Dimension (W x H x D)
600x1461x376mm
+600x1293x376mm

GENERAL

BMS Dimensions (L × W × H)	600 × 225 × 376 mm
BMS Weight	18.5 kg
Battery type	Li-ion (LFP)
Module capacity	5.1 kWh
Battery dimension (W x H x D)	600 × 168 × 376 mm
Battery weight	46 kg / 47.1 kg (with optimizer)

GENERAL SPECIFICATION

Environment Outdoor / Indoor
Protection degree IP66
