Домашни батерии

T-BAT-SYS-LV-R25

2,5 kWh-40,9 kWh

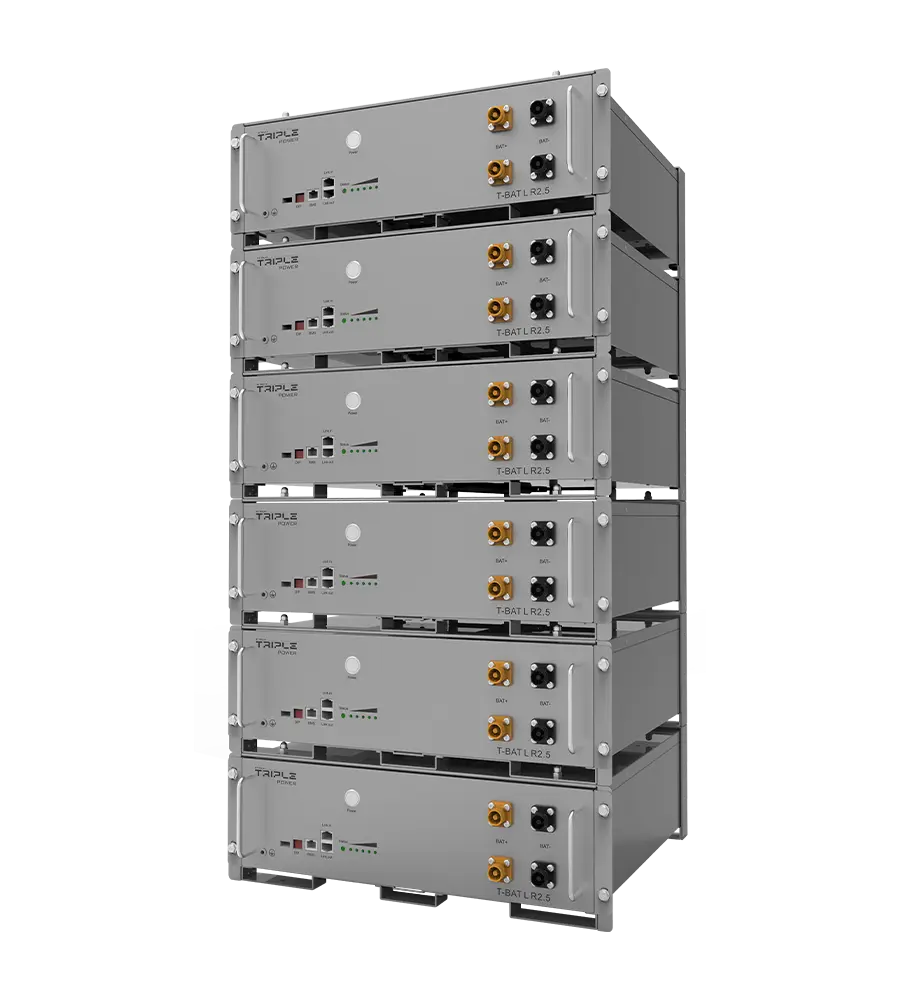

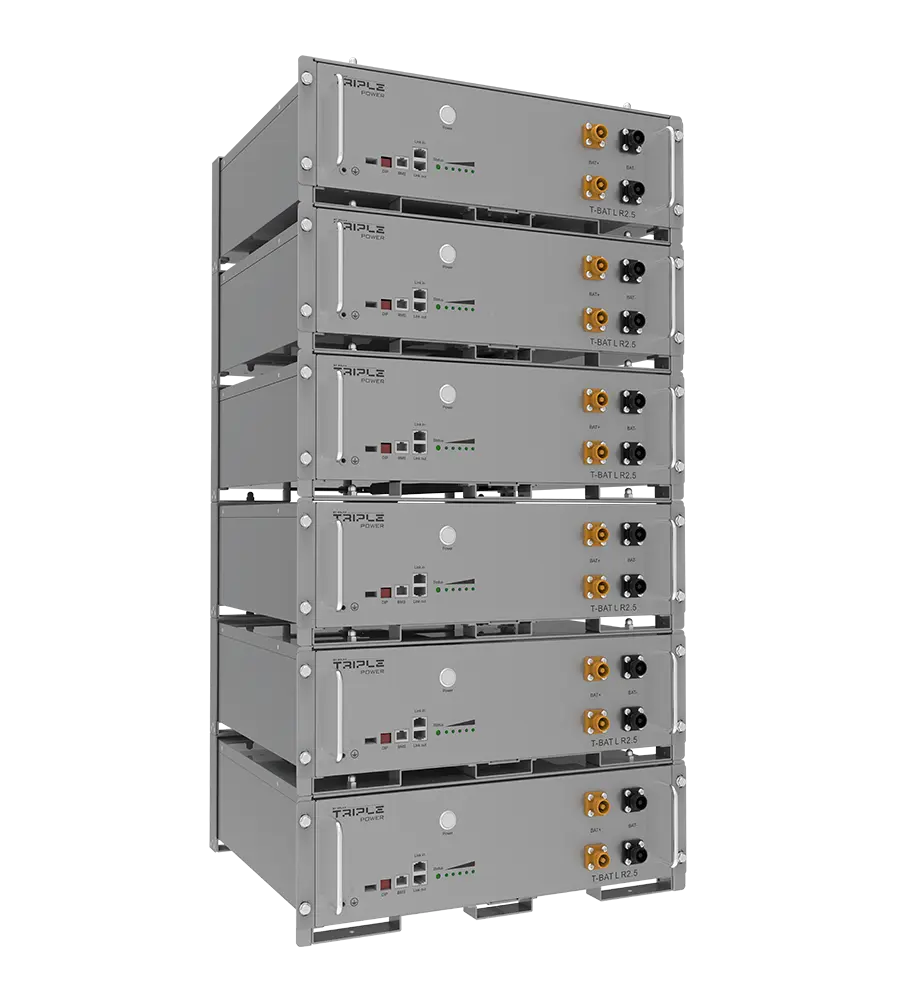

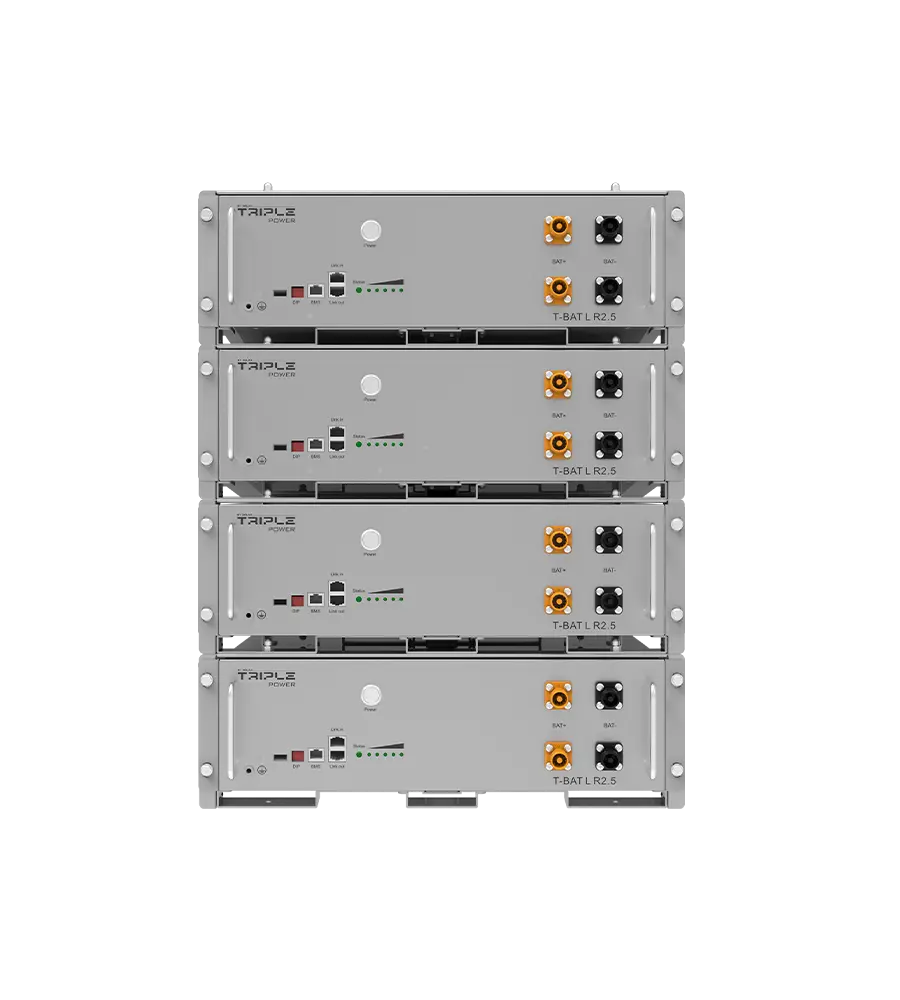

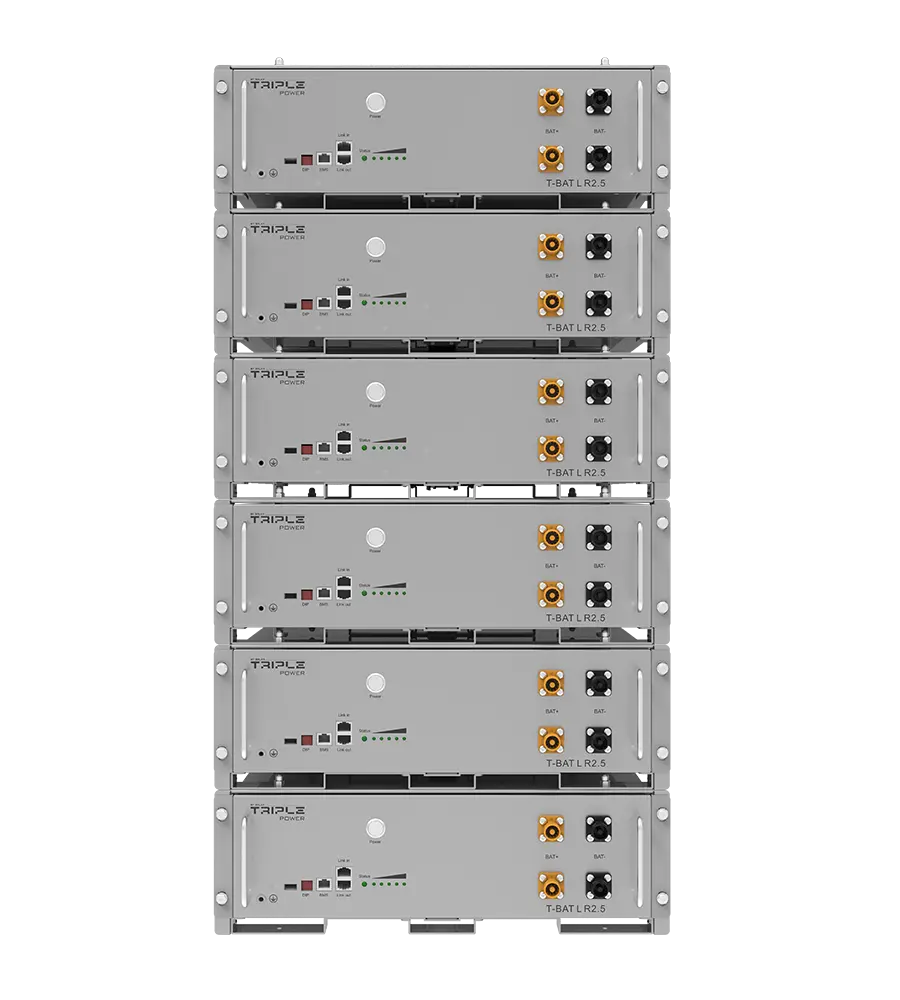

SolaX T-BAT-SYS-LV R25 е нисковолтова батерия, предназначена за съхранение на енергия в жилищни помещения. Захранвана от безопасна LFP технология, тази батерия за съхранение на енергия поддържа широк диапазон на капацитет от 2,5 kWh до 40,9 kWh. Идеална за употреба с X1 HYBRID LV инвертор, тя е идеална за собственици на жилища, които търсят надеждно и разширяемо съхранение на слънчева енергия.

Гледайте видеото
Изтегляне на данни

Предимство на продукта

Цикловият живот на T-BAT-SYS-LV R25 надвишава 6000 цикъла, осигурявайки дълготрайност и ефективност при пренос на енергия. Степента на защита IP20 на батерията, комбинирана с функцията за плавен старт, осигурява безопасност от внезапни скокове в захранването. Освен това, модулният дизайн на батерията за подреждане осигурява лесна гъвкавост, независимо дали е монтирана на стена, конзола или в шкаф.

Свържете се с нас

Assured Reliability

LiFePO4 battery cell & high-performance processors
IP20 protection degree
Soft start to protect from BAT and INV a sudden surge

High Performance

Cycle life > 6000 times
High capacity utilization
Efficient energy transfer

Smart Management

Remote fault diagnosis, upgrade and maintenance

Flexible Adaptability

Wall quick bracket, or cabinet mounting optional
Easy to scale up

Параметри на продукта

T-BAT LR2.5
T-BAT LR5.0
T-BAT LR7.5
T-BAT LR10.0
T-BAT LR12.5
T-BAT LR15.0
T-BAT LR17.5
T-BAT LR20.0
T-BAT LR22.5
T-BAT LR25.0
T-BAT LR27.5
T-BAT LR30.0
T-BAT LR32.5
T-BAT LR35.0
T-BAT LR37.5
T-BAT LR40.0

T-BAT LR2.5
- SYSTEM DATA

  Number of modules 1 Module
  Nominal capacity 2.5 kWh
  Max.output current 50 A
  Peak discharge current
  60 A (60 s)
  100 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR5.0
- SYSTEM DATA

  Number of modules 2 Module
  Nominal capacity 5.1 kWh
  Max.output current 85 A
  Peak discharge current
  120 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR7.5
- SYSTEM DATA

  Number of modules 3 Module
  Nominal capacity 7.6 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR10.0
- SYSTEM DATA

  Number of modules 4 Module
  Nominal capacity 10.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR12.5
- SYSTEM DATA

  Number of modules 5 Module
  Nominal capacity 12.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR15.0
- SYSTEM DATA

  Number of modules 6 Module
  Nominal capacity 15.3 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR17.5
- SYSTEM DATA

  Number of modules 7 Module
  Nominal capacity 17.9 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR20.0
- SYSTEM DATA

  Number of modules 8 Module
  Nominal capacity 20.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR22.5
- SYSTEM DATA

  Number of modules 9 Module
  Nominal capacity 23.0 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR25.0
- SYSTEM DATA

  Number of modules 10 Modules
  Nominal capacity 25.6 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR27.5
- SYSTEM DATA

  Number of modules 11 Modules
  Nominal capacity 28.1 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR30.0
- SYSTEM DATA

  Number of modules 12 Modules
  Nominal capacity 30.7 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR32.5
- SYSTEM DATA

  Number of modules 13 Modules
  Nominal capacity 33.2 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR35.0
- SYSTEM DATA

  Number of modules 14 Modules
  Nominal capacity 35.8 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR37.5
- SYSTEM DATA

  Number of modules 15 Modules
  Nominal capacity 38.4 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
T-BAT LR40.0
- SYSTEM DATA

  Number of modules 16 Modules
  Nominal capacity 40.9 kWh
  Max.output current 120 A
  Peak discharge current
  150 A (60 s)
  200 A (15 s)
- GENERAL

  Nominal voltage 51.2 V
  T-BAT LR2.5 Dimensions (L × W × H) 442 × 420 × 130 mm
  T-BAT LR2.5 Weight 30 kg
  Battery type Lithium iron phosphate
  IP rating of enclosure IP20
