Домашни батерии

T-BAT-SYS-LV D53

  • 5,3 kWh-85,1 kWh

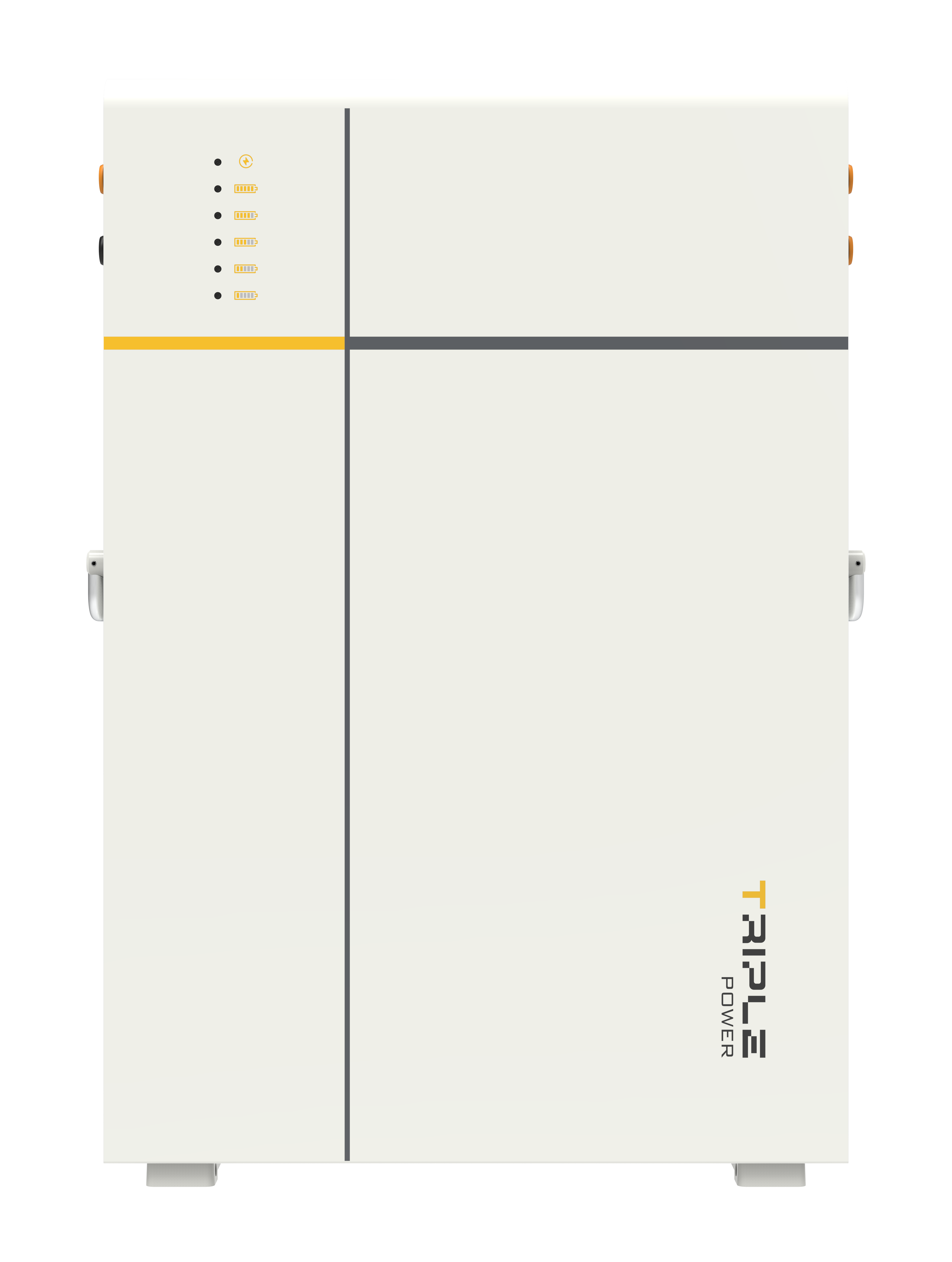

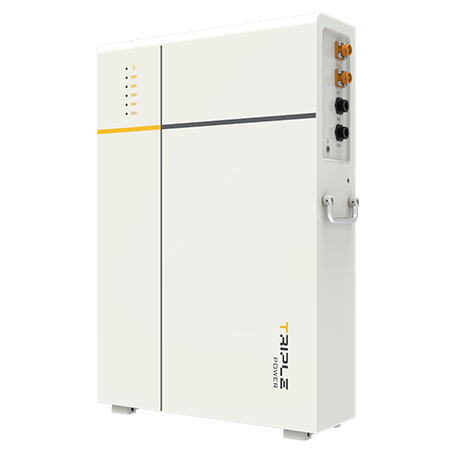

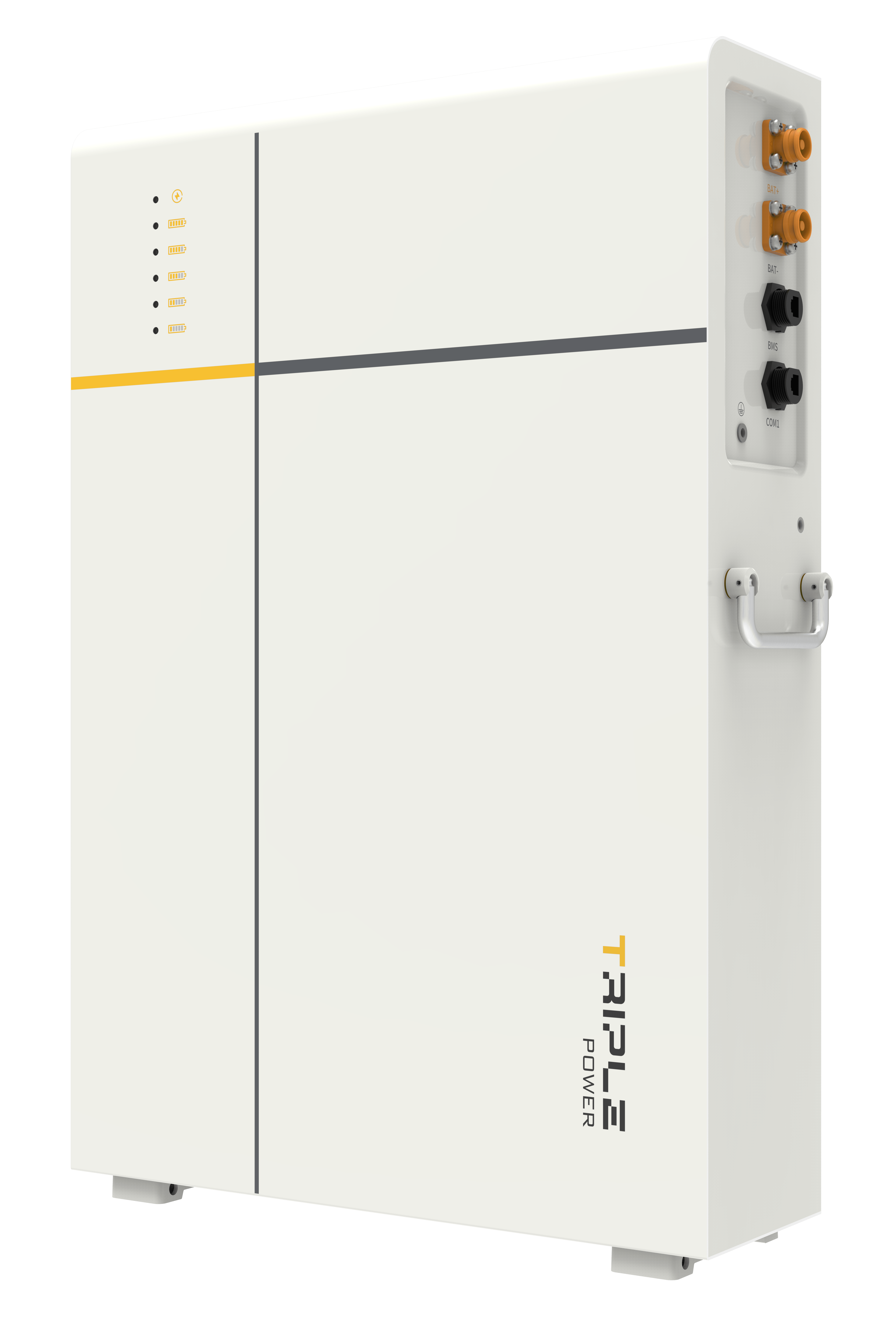

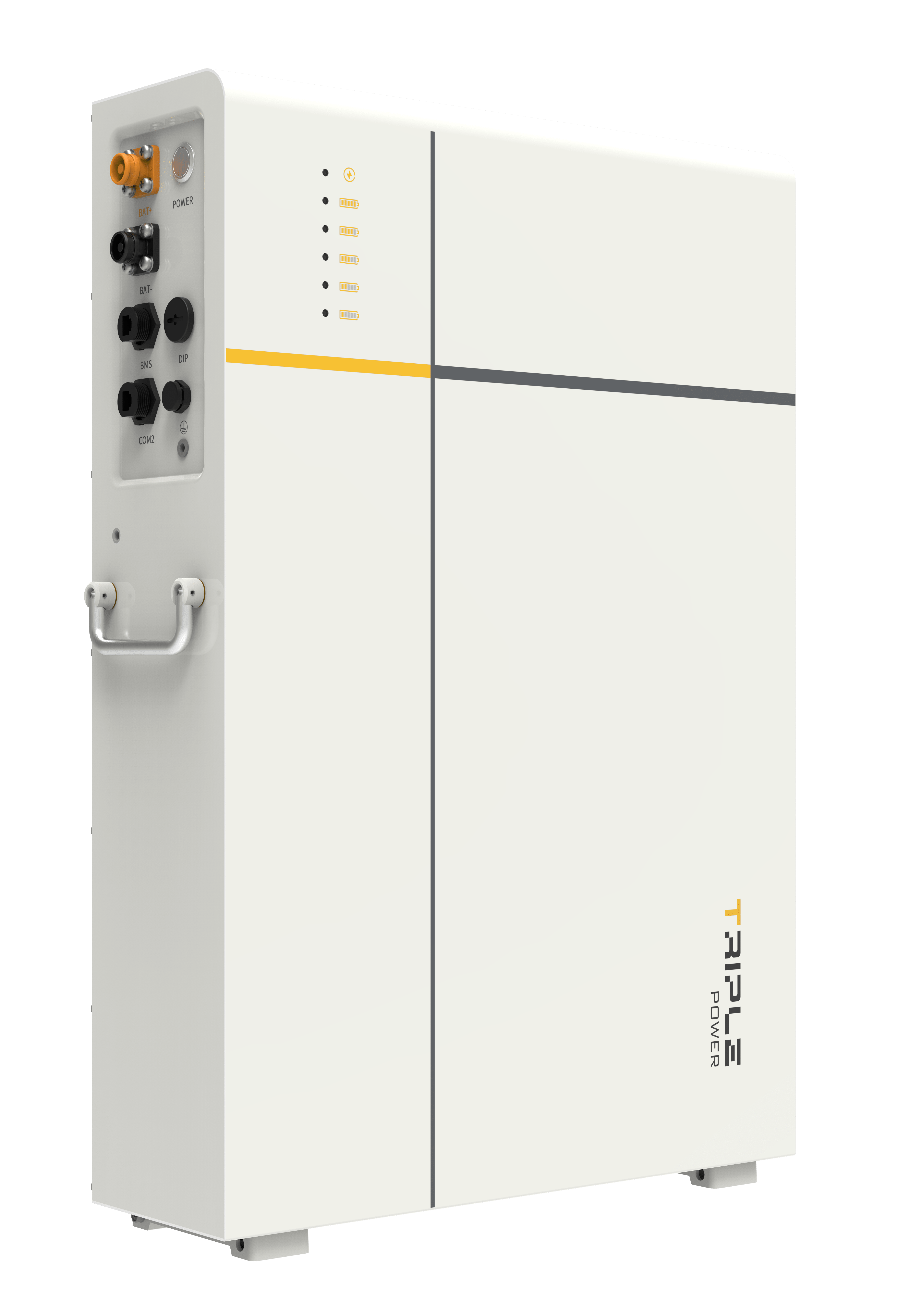

SolaX T-BAT-SYS-LV D53 е система за съхранение на енергия за жилищни сгради от следващо поколение, използваща усъвършенствана LFP технология за батерии. С широк диапазон на капацитет от 5,3 до 85,1 kWh и поддръжка на 16 системи в паралел предлага гъвкаво, мащабируемо съхранение на енергия, съобразено с нуждите на съвременните домакинства.

Предимство на продукта

T-BAT-SYS-LV D53 се откроява с мощната си производителност, поддържайки пикови разрядни токове от 200A и предлага дълъг циклов живот от над 6000 цикъла. Корпусът със степен на защита IP65 и високопроизводителните процесори осигуряват надеждна работа в различни среди. Подобрени от алгоритми за управление, задвижвани от изкуствен интелект и възможности за дистанционно наблюдение, се осигурява интелигентен контрол на енергията с минимална поддръжка.

Свържете се с нас

Assured Reliability

  • LiFePO4 battery cell & high-performance processors

  • IP65 protection degree


Flexible Adaptability

  • Floor or wall mounting optional

  • Modular design, expandable to 16 units in parallel


High Performance

  • Peak discharge current: 200A for 10s

  • Cycle life > 6000 times


Smart Management

  • Remote fault diagnosis, upgrade and maintenance

  • Al-driven intelligent algorithms for high SOC and accuracy


Параметри на продукта

  • T-BAT LD53
  • T-BAT LD106
  • T-BAT LD159
  • T-BAT LD212
  • T-BAT LD265
  • T-BAT LD318
  • T-BAT LD371
  • T-BAT LD424
  • T-BAT LD477
  • T-BAT LD530
  • T-BAT LD583
  • T-BAT LD636
  • T-BAT LD689
  • T-BAT LD742
  • T-BAT LD795
  • T-BAT LD848
  • T-BAT LD53
    • SYSTEM DATA
      Number of modules1
      Nominal capacity5.3 kWh
      Max.output current100 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65


  • T-BAT LD106
    • SYSTEM DATA
      Number of modules2
      Nominal capacity10.6 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD159
    • SYSTEM DATA
      Number of modules3
      Nominal capacity15.9 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD212
    • SYSTEM DATA
      Number of modules4
      Nominal capacity21.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD265
    • SYSTEM DATA
      Number of modules5
      Nominal capacity26.6 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD318
    • SYSTEM DATA
      Number of modules6
      Nominal capacity31.9 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD371
    • SYSTEM DATA
      Number of modules7
      Nominal capacity37.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD424
    • SYSTEM DATA
      Number of modules8
      Nominal capacity42.5 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD477
    • SYSTEM DATA
      Number of modules9
      Nominal capacity47.9 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



  • T-BAT LD530
    • SYSTEM DATA
      Number of modules10
      Nominal capacity53.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD583
    • SYSTEM DATA
      Number of modules11
      Nominal capacity58.5 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD636
    • SYSTEM DATA
      Number of modules12
      Nominal capacity63.8 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD689
    • SYSTEM DATA
      Number of modules13
      Nominal capacity69.2 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD742
    • SYSTEM DATA
      Number of modules14
      Nominal capacity74.5 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD795
    • SYSTEM DATA
      Number of modules15
      Nominal capacity79.8 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65




  • T-BAT LD848
    • SYSTEM DATA
      Number of modules16
      Nominal capacity85.1 kWh
      Max.output current120 A
      Peak discharge current

      200 A, 10s


    • GENERAL
      Nominal voltage51.2 V
      Dimension (L x W x H)645 x 150 x 430 mm
      Weight48.5 kg
      Battery typeLithium iron phosphate
      Ingress protectionIP65



Изтегляне на данни

  • Технически данни
  • Ръководство за потребителя
  • Ръководство за бърза инсталация
